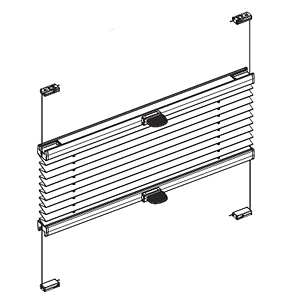

braced system with top and bottom handle bar, freely slidable

Tensioned system with handle operation and variable curtain

Width:
- min. 0.20 m
- max. 1.20 m (height max. 2.20 m)
- max. 1.50 m (height max. 1.60 m)
Height: min. 0.20 m / max. 2.20 m
Area: max. 2.60 m²
Incline angle: max. 15°

Operation:
- 1 operating handle in the middle up to 1.30 m wide
- 2 operating handles from 1.30 m wide

Profiles:
- up to 100 cm “tension profile” 20x17mm (see picture under construction)
- over 100 cm "tension profile high" 20x23mm (see picture under construction)

Note: You can also choose the "tension profile high" 20x23mm below the pleated blind width of 100 cm, e.g. if two systems hang next to each other, where different profiles are manufactured as standard.

Profile color:
anodized aluminum,
painted white, brown, beige or black

Operating option:
- Operating rod (anodized) ( with surcharge )
Length: 1.00 m, 1.50 m or 2.00 m
Special lengths up to max. 3.00 m on request

article
We provide many colors and designs in exclusive fabric qualities.

System and package height

50 cm		41-45 mm
100 cm		45-52 mm
150 cm		48-59 mm
200 cm		52-66 mm
220 cm		53-69 mm

System and package height

50 cm		53-57 mm
100 cm		57-64 mm
150 cm		60-71 mm
200 cm		64-78 mm
220 cm		65-81 mm
